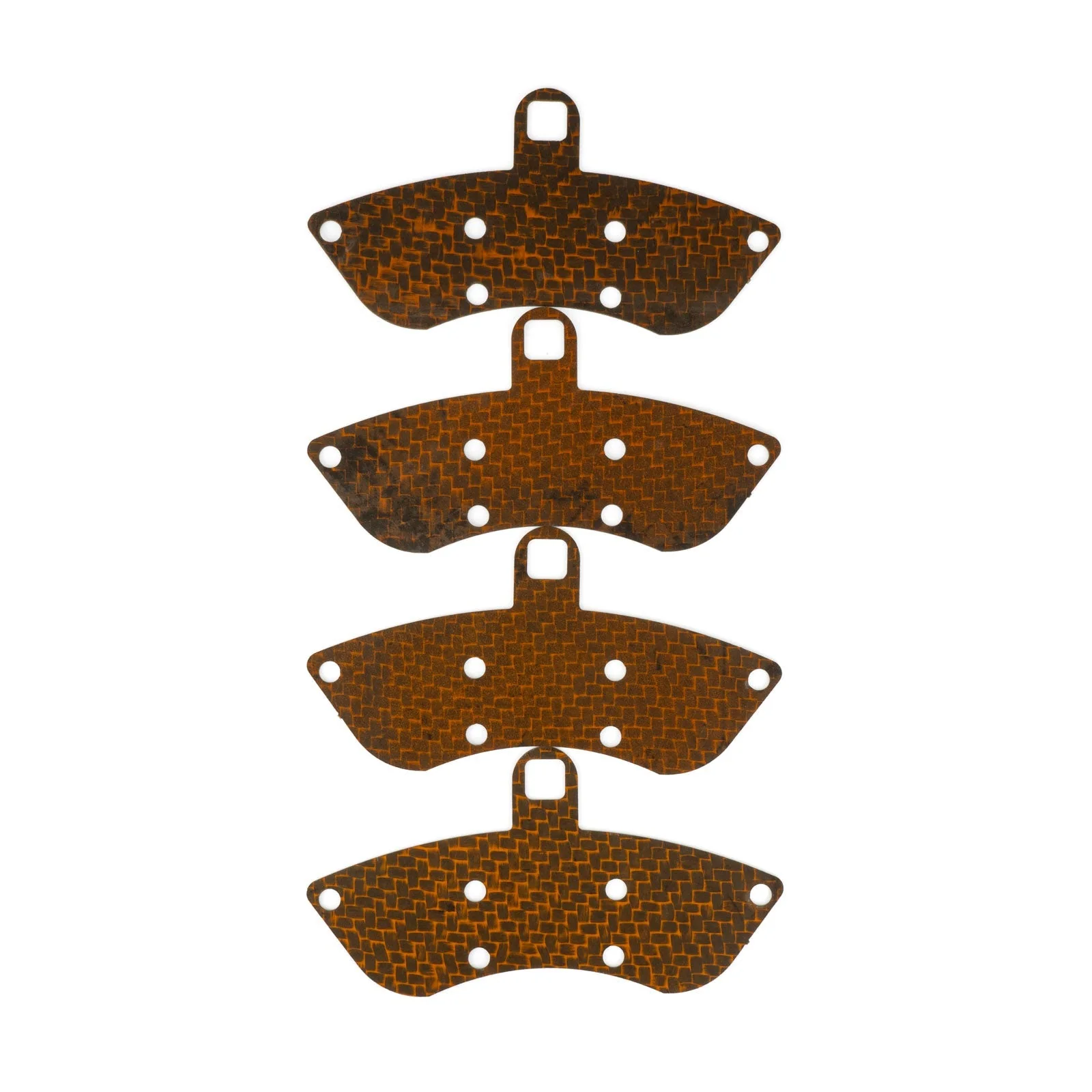

HEL Performance have pulled out all the stops when developing their carbon Fiber brake pad shims. They've used the finest carbon Fiber, combined with an exclusive resin which is non-combustible and thermally resistant to temperatures over 400°C (752°F). This special resin cures an attractive yellow or orange depending on the batch.

These don't just look the part though: initial testing carried out by a professional racing driver in various road and track conditions showed a huge average temperature drop of 49°C (120.2°F) on the front calipers.

HEL carbon Fiber shims come in at a super-lightweight 3.5 grams per shim, compared to weighty titanium which are a typical 17 grams per shim. That's a dramatic 79% weight saving.

That's not the only comparison which makes titanium inferior though: carbon Fiber also has a much lower heat conduction compared to titanium (1W/mK compared to 22W/mK for titanium and 65W/mK for steel). Anything that helps reduce the temperature and increase efficiency of brake components is a good thing, especially as caliper seals are at risk of being damaged when they get too hot.

Installing these carbon Fiber brake pad shims will certainly inspire confidence that when you brake aggressively, all the components are being kept cool and working at their best.

You can also re-use the shims when changing pads, as long as they're in a good condition.

Caliper Temperatures

	Standard	HEL Carbon Fiber Shims	Difference
Front Right	217.8°C	165.6°C	↓  52.2°C (24%)
Front Left	224.8°C	178.9°C	↓  45.9°C (20.4%)
Rear Right	138.9°C	116.6°C	↓  22.3°C (16.1%)
Rear Left	131.1°C	113.3°C	↓  17.8°C (13.6%)
